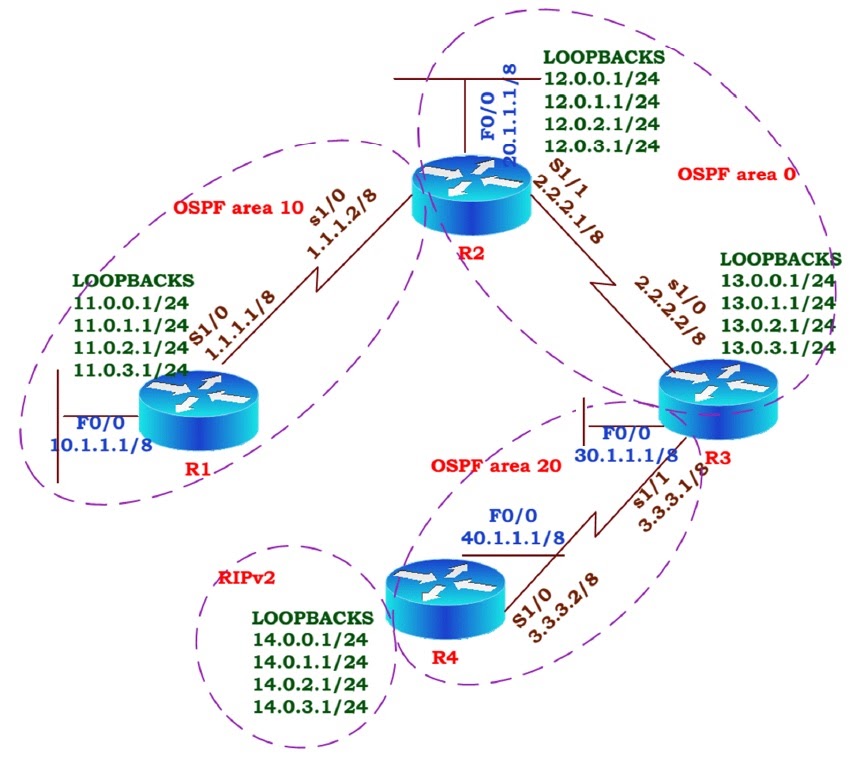

Lab 1 Link to heading
Task 1 Link to heading
Configure basic OSPF
Configuration Link to heading
hostname R1
int l0
ip add 11.0.0.1 255.255.255.0
int l1
ip add 11.0.1.1 255.255.255.0
int l2
ip add 11.0.2.1 255.255.255.0
int l3
ip add 11.0.3.1 255.255.255.0
int f0/0
ip add 10.1.1.1 255.0.0.0
no shut
int s1/0
ip add 1.1.1.1 255.0.0.0
no shut
router ospf 100
net 11.0.0.0 0.0.0.255 area 10
net 11.0.1.0 0.0.0.255 area 10
net 11.0.2.0 0.0.0.255 area 10
net 11.0.3.0 0.0.0.255 area 10
net 1.0.0.0 0.255.255.255 area 10
net 10.0.0.0 0.255.255.255 area 10
passive-interface f0/0
passive-interface l0
passive-interface l1
passive-interface l2
passive-interface l3
hostname R2
int l0
ip add 12.0.0.1 255.255.255.0
int l1
ip add 12.0.1.1 255.255.255.0
int l2
ip add 12.0.2.1 255.255.255.0
int l3
ip add 12.0.3.1 255.255.255.0
int f0/0
ip add 20.1.1.1 255.0.0.0
no shut
int s1/0
ip add 1.1.1.2 255.0.0.0
no shut
int s1/1
ip add 2.2.2.1 255.0.0.0
no shut
router ospf 100
net 1.0.0.0 0.255.255.255 area 10
net 12.0.0.0 0.0.0.255 area 0
net 12.0.1.0 0.0.0.255 area 0
net 12.0.2.0 0.0.0.255 area 0
net 12.0.3.0 0.0.0.255 area 0
net 2.0.0.0 0.255.255.255 area 0
net 20.0.0.0 0.255.255.255 area 0
passive-interface f0/0
passive-interface l0
passive-interface l1
passive-interface l2
passive-interface l3
hostname R3
int l0
ip add 13.0.0.1 255.255.255.0
int l1
ip add 13.0.1.1 255.255.255.0
int l2
ip add 13.0.2.1 255.255.255.0
int l3
ip add 13.0.3.1 255.255.255.0
int f0/0
ip add 30.1.1.1 255.0.0.0
no shut
int s1/0
ip add 2.2.2.2 255.0.0.0
no shut
int s1/1
ip add 3.3.3.1 255.0.0.0
no shut
router ospf 100
net 13.0.0.0 0.0.0.255 area 0
net 13.0.1.0 0.0.0.255 area 0
net 13.0.2.0 0.0.0.255 area 0
net 13.0.3.0 0.0.0.255 area 0
net 2.0.0.0 0.255.255.255 area 0
net 30.0.0.0 0.255.255.255 area 20
net 3.0.0.0 0.255.255.255 area 20
passive-interface f0/0
passive-interface l0
passive-interface l1
passive-interface l2
passive-interface l3
hostname R4
int l0
ip add 14.0.0.1 255.255.255.0
int l1
ip add 14.0.1.1 255.255.255.0
int l2
ip add 14.0.2.1 255.255.255.0
int l3
ip add 14.0.3.1 255.255.255.0
int f0/0
ip add 40.1.1.1 255.0.0.0
no shut
int s1/0
ip add 3.3.3.2 255.0.0.0
no shut
router rip
version 2
no auto-sum
net 14.0.0.0
net 14.0.1.0
net 14.0.2.0
net 14.0.3.0
passive-interface l0
passive-interface l1
passive-interface l2
passive-interface l3
router ospf 100
net 40.0.0.0 0.255.255.255 area 20
net 3.0.0.0 0.255.255.255 area 20
redistribute rip subnets
passive-interface f0/0
Verification Link to heading
R1# show ip route ospf
Codes: O - OSPF, IA - OSPF inter area
E1 - OSPF external type 1, E2 - OSPF external type 2
Gateway of last resort is not set
O IA 2.0.0.0/8 [110/128] via 1.1.1.2, 00:03:42, Serial1/0
O IA 3.0.0.0/8 [110/192] via 1.1.1.2, 00:03:03, Serial1/0
12.0.0.0/32 is subnetted, 4 subnets
O IA 12.0.0.1 [110/65] via 1.1.1.2, 00:03:42, Serial1/0
O IA 12.0.1.1 [110/65] via 1.1.1.2, 00:03:42, Serial1/0
O IA 12.0.2.1 [110/65] via 1.1.1.2, 00:03:42, Serial1/0
O IA 12.0.3.1 [110/65] via 1.1.1.2, 00:03:42, Serial1/0
13.0.0.0/32 is subnetted, 4 subnets
O IA 13.0.0.1 [110/129] via 1.1.1.2, 00:03:42, Serial1/0
O IA 13.0.1.1 [110/129] via 1.1.1.2, 00:03:42, Serial1/0
O IA 13.0.2.1 [110/129] via 1.1.1.2, 00:03:42, Serial1/0
O IA 13.0.3.1 [110/129] via 1.1.1.2, 00:03:42, Serial1/0
14.0.0.0/24 is subnetted, 4 subnets
O E2 14.0.0.0 [110/20] via 1.1.1.2, 00:01:27, Serial1/0
O E2 14.0.1.0 [110/20] via 1.1.1.2, 00:01:27, Serial1/0
O E2 14.0.2.0 [110/20] via 1.1.1.2, 00:01:27, Serial1/0
O E2 14.0.3.0 [110/20] via 1.1.1.2, 00:01:27, Serial1/0
O IA 20.0.0.0/8 [110/65] via 1.1.1.2, 00:03:42, Serial1/0
O IA 30.0.0.0/8 [110/129] via 1.1.1.2, 00:03:42, Serial1/0
O IA 40.0.0.0/8 [110/193] via 1.1.1.2, 00:03:03, Serial1/0
Task 2 Link to heading
Configure Area 10 to stop LSA Type 5 and Type 4 (Stub Area).
Configuration Link to heading
R1(config)#
router ospf 100
area 10 stub
R2(config)#
router ospf 100
area 10 stub
Verification Link to heading
R1# show ip route ospf
Codes: O - OSPF, IA - OSPF inter area
* - candidate default
Gateway of last resort is 1.1.1.2 to network 0.0.0.0
O*IA 0.0.0.0/0 [110/65] via 1.1.1.2, 00:00:01, Serial1/0
O IA 2.0.0.0/8 [110/128] via 1.1.1.2, 00:00:01, Serial1/0
O IA 3.0.0.0/8 [110/192] via 1.1.1.2, 00:00:01, Serial1/0
12.0.0.0/32 is subnetted, 4 subnets
O IA 12.0.0.1 [110/65] via 1.1.1.2, 00:00:01, Serial1/0
O IA 12.0.1.1 [110/65] via 1.1.1.2, 00:00:01, Serial1/0
O IA 12.0.2.1 [110/65] via 1.1.1.2, 00:00:01, Serial1/0
O IA 12.0.3.1 [110/65] via 1.1.1.2, 00:00:01, Serial1/0
13.0.0.0/32 is subnetted, 4 subnets
O IA 13.0.0.1 [110/129] via 1.1.1.2, 00:00:01, Serial1/0
O IA 13.0.1.1 [110/129] via 1.1.1.2, 00:00:01, Serial1/0
O IA 13.0.2.1 [110/129] via 1.1.1.2, 00:00:01, Serial1/0
O IA 13.0.3.1 [110/129] via 1.1.1.2, 00:00:01, Serial1/0
O IA 20.0.0.0/8 [110/65] via 1.1.1.2, 00:00:01, Serial1/0
O IA 30.0.0.0/8 [110/129] via 1.1.1.2, 00:00:01, Serial1/0
O IA 40.0.0.0/8 [110/193] via 1.1.1.2, 00:00:01, Serial1/0
Task 3 Link to heading
Configure Area 10 to stop LSA Type 5, Type 4 and Type 3 (Totally Stub Area).
Configuration Link to heading
R1(config)#
router ospf 100
area 10 stub
R2(config)#
router ospf 100
area 10 stub no-summary
Verification Link to heading
R1# show ip route ospf
Codes: O - OSPF, IA - OSPF inter area
* - candidate default
Gateway of last resort is 1.1.1.2 to network 0.0.0.0
O*IA 0.0.0.0/0 [110/65] via 1.1.1.2, 00:00:00, Serial1/0

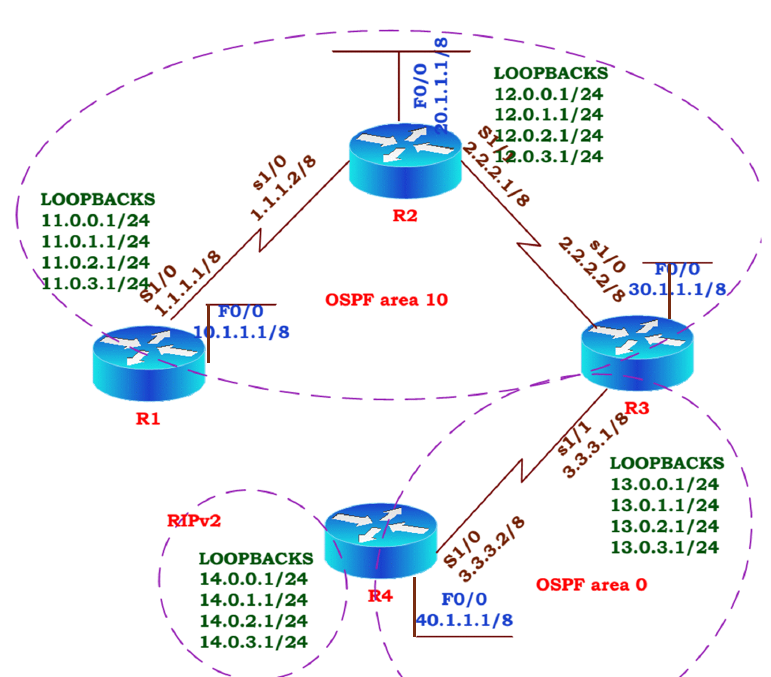

Lab 2 Link to heading
Task 1 Link to heading
Configure basic OSPF
Configuration Link to heading
hostname R1
int l0
ip add 11.0.0.1 255.255.255.0
int l1
ip add 11.0.1.1 255.255.255.0
int l2
ip add 11.0.2.1 255.255.255.0
int l3
ip add 11.0.3.1 255.255.255.0
int f0/0
ip add 10.1.1.1 255.0.0.0
no shut
int s1/0
ip add 1.1.1.1 255.0.0.0
no shut
router ospf 100
net 11.0.0.0 0.0.0.255 area 10
net 11.0.1.0 0.0.0.255 area 10
net 11.0.2.0 0.0.0.255 area 10
net 11.0.3.0 0.0.0.255 area 10
net 1.0.0.0 0.255.255.255 area 10
net 10.0.0.0 0.255.255.255 area 10
passive-interface f0/0
passive-interface l0
passive-interface l1
passive-interface l2
passive-interface l3
hostname R2
int l0
ip add 12.0.0.1 255.255.255.0
int l1
ip add 12.0.1.1 255.255.255.0
int l2
ip add 12.0.2.1 255.255.255.0
int l3
ip add 12.0.3.1 255.255.255.0
int f0/0
ip add 20.1.1.1 255.0.0.0
no shut
int s1/0
ip add 1.1.1.2 255.0.0.0
no shut
int s1/1
ip add 2.2.2.1 255.0.0.0
no shut
router ospf 100
net 12.0.0.0 0.0.0.255 area 10
net 12.0.1.0 0.0.0.255 area 10
net 12.0.2.0 0.0.0.255 area 10
net 12.0.3.0 0.0.0.255 area 10
net 2.0.0.0 0.255.255.255 area 10
net 20.0.0.0 0.255.255.255 area 10
net 1.0.0.0 0.255.255.255 area 10
passive-interface f0/0
passive-interface l0
passive-interface l1
passive-interface l2
passive-interface l3
hostname R3
int l0
ip add 13.0.0.1 255.255.255.0
int l1
ip add 13.0.1.1 255.255.255.0
int l2
ip add 13.0.2.1 255.255.255.0
int l3
ip add 13.0.3.1 255.255.255.0
int f0/0
ip add 30.1.1.1 255.0.0.0
no shut
int s1/0
ip add 2.2.2.2 255.0.0.0
no shut
int s1/1
ip add 3.3.3.1 255.0.0.0
no shut
router ospf 100
net 2.0.0.0 0.255.255.255 area 10
net 30.0.0.0 0.255.255.255 area 10
net 13.0.0.0 0.0.0.255 area 0
net 13.0.1.0 0.0.0.255 area 0
net 13.0.2.0 0.0.0.255 area 0
net 13.0.3.0 0.0.0.255 area 0
net 3.0.0.0 0.255.255.255 area 0
passive-interface f0/0
passive-interface l0
passive-interface l1
passive-interface l2
passive-interface l3
hostname R4
int l0
ip add 14.0.0.1 255.255.255.0
int l1
ip add 14.0.1.1 255.255.255.0
int l2
ip add 14.0.2.1 255.255.255.0
int l3
ip add 14.0.3.1 255.255.255.0
int f0/0
ip add 40.1.1.1 255.0.0.0
no shut
int s1/0
ip add 3.3.3.2 255.0.0.0
no shut
router rip
version 2
no auto-summary
net 14.0.0.0
net 14.0.1.0
net 14.0.2.0
net 14.0.3.0
passive-interface l0
passive-interface l1
passive-interface l2
passive-interface l3
router ospf 100
net 40.0.0.0 0.255.255.255 area 0
net 3.0.0.0 0.255.255.255 area 0
redistribute rip subnets
passive-interface f0/0
Verification Link to heading
R1# show ip route ospf
Codes: O - OSPF, IA - OSPF inter area
E1 - OSPF external type 1, E2 - OSPF external type 2
Gateway of last resort is not set
O 2.0.0.0/8 [110/128] via 1.1.1.2, 00:01:12, Serial1/0
O IA 3.0.0.0/8 [110/192] via 1.1.1.2, 00:00:12, Serial1/0
12.0.0.0/32 is subnetted, 4 subnets
O 12.0.0.1 [110/65] via 1.1.1.2, 00:01:12, Serial1/0
O 12.0.1.1 [110/65] via 1.1.1.2, 00:01:12, Serial1/0
O 12.0.2.1 [110/65] via 1.1.1.2, 00:01:12, Serial1/0
O 12.0.3.1 [110/65] via 1.1.1.2, 00:01:12, Serial1/0
13.0.0.0/32 is subnetted, 4 subnets
O IA 13.0.0.1 [110/129] via 1.1.1.2, 00:00:42, Serial1/0
O IA 13.0.1.1 [110/129] via 1.1.1.2, 00:00:42, Serial1/0
O IA 13.0.2.1 [110/129] via 1.1.1.2, 00:00:42, Serial1/0
O IA 13.0.3.1 [110/129] via 1.1.1.2, 00:00:42, Serial1/0
14.0.0.0/24 is subnetted, 4 subnets
O E2 14.0.0.0 [110/20] via 1.1.1.2, 00:00:07, Serial1/0
O E2 14.0.1.0 [110/20] via 1.1.1.2, 00:00:07, Serial1/0
O E2 14.0.2.0 [110/20] via 1.1.1.2, 00:00:07, Serial1/0
O E2 14.0.3.0 [110/20] via 1.1.1.2, 00:00:07, Serial1/0
O 20.0.0.0/8 [110/65] via 1.1.1.2, 00:01:12, Serial1/0
O 30.0.0.0/8 [110/129] via 1.1.1.2, 00:00:42, Serial1/0
O IA 40.0.0.0/8 [110/193] via 1.1.1.2, 00:00:12, Serial1/0
Task 2 Link to heading
Configure Area 10 to stop LSA Type 5 and Type 4 (Stub Area).
Configuration Link to heading
R1(config)#
router ospf 100
area 10 stub
R2(config)#
router ospf 100
area 10 stub
R3(config)#
router ospf 100
area 10 stub
Verification Link to heading
R1# show ip route ospf
Codes: O - OSPF, IA - OSPF inter area
* - candidate default
Gateway of last resort is 1.1.1.2 to network 0.0.0.0
O*IA 0.0.0.0/0 [110/129] via 1.1.1.2, 00:00:04, Serial1/0
O 2.0.0.0/8 [110/128] via 1.1.1.2, 00:00:04, Serial1/0
O IA 3.0.0.0/8 [110/192] via 1.1.1.2, 00:00:04, Serial1/0
12.0.0.0/32 is subnetted, 4 subnets
O 12.0.0.1 [110/65] via 1.1.1.2, 00:00:04, Serial1/0
O 12.0.1.1 [110/65] via 1.1.1.2, 00:00:04, Serial1/0
O 12.0.2.1 [110/65] via 1.1.1.2, 00:00:04, Serial1/0
O 12.0.3.1 [110/65] via 1.1.1.2, 00:00:04, Serial1/0
13.0.0.0/32 is subnetted, 4 subnets
O IA 13.0.0.1 [110/129] via 1.1.1.2, 00:00:04, Serial1/0
O IA 13.0.1.1 [110/129] via 1.1.1.2, 00:00:04, Serial1/0
O IA 13.0.2.1 [110/129] via 1.1.1.2, 00:00:04, Serial1/0
O IA 13.0.3.1 [110/129] via 1.1.1.2, 00:00:04, Serial1/0
O 20.0.0.0/8 [110/65] via 1.1.1.2, 00:00:04, Serial1/0
O 30.0.0.0/8 [110/129] via 1.1.1.2, 00:00:04, Serial1/0
O IA 40.0.0.0/8 [110/193] via 1.1.1.2, 00:00:04, Serial1/0
Task 3 Link to heading
Configure Area 10 to stop LSA Type 5, Type 4 and Type 3 (Totally Stub Area).
Configuration Link to heading
R1(config)#
router ospf 100
area 10 stub
R2(config)#
router ospf 100
area 10 stub
R3(config)#
router ospf 100
area 10 stub no-summary
Verification Link to heading
R1# show ip route ospf
Codes: O - OSPF, IA - OSPF inter area
* - candidate default
Gateway of last resort is 1.1.1.2 to network 0.0.0.0
O*IA 0.0.0.0/0 [110/129] via 1.1.1.2, 00:00:35, Serial1/0
O 2.0.0.0/8 [110/128] via 1.1.1.2, 00:02:32, Serial1/0
12.0.0.0/32 is subnetted, 4 subnets
O 12.0.0.1 [110/65] via 1.1.1.2, 00:02:32, Serial1/0
O 12.0.1.1 [110/65] via 1.1.1.2, 00:02:32, Serial1/0
O 12.0.2.1 [110/65] via 1.1.1.2, 00:02:32, Serial1/0
O 12.0.3.1 [110/65] via 1.1.1.2, 00:02:32, Serial1/0
O 20.0.0.0/8 [110/65] via 1.1.1.2, 00:02:32, Serial1/0
O 30.0.0.0/8 [110/129] via 1.1.1.2, 00:00:35, Serial1/0
R2# show ip route ospf
Codes: O - OSPF, IA - OSPF inter area
* - candidate default
Gateway of last resort is 2.2.2.2 to network 0.0.0.0
