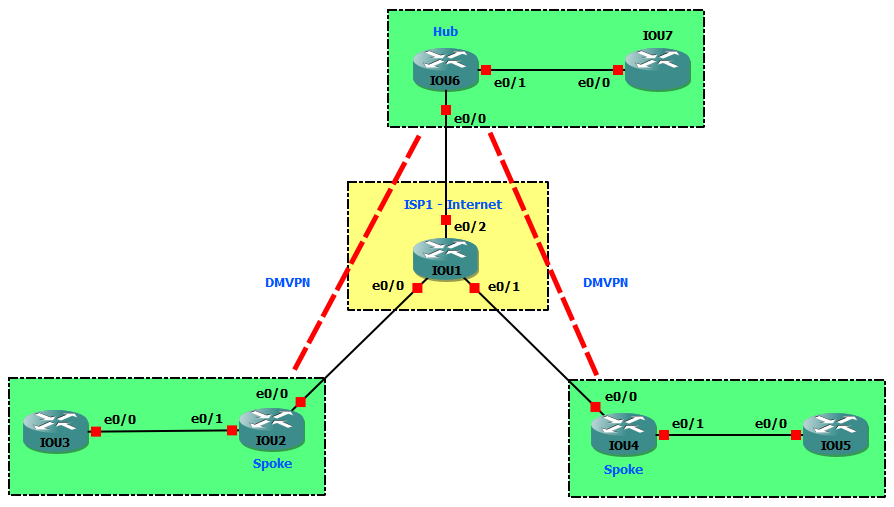

topology

  • Loopback IP: x.x.x.x/32
  • Public IP: 209.165.xy.x/24
  • Private IP: 192.168.xy.x/24
  • Tunnel IP: 169.254.xyz.x/24

Task 1 Link to heading

  • Configure EIGRP 1 on R1, R2, R4 and R6 to advertise Loopback 0 of R2, R4 and R6 to each other.
  • Configure a static default route on R3 and R5 point to R2 and R4, respectively.
  • Configure named EIGRP CCIE AS 100 in Hub and Spoke sites. Passive all inside LAN interfaces in Spoke sites.

Configuration Link to heading

hostname IOU1
int e0/0
    ip add 209.165.12.1 255.255.255.0
    no shut
int e0/1
    ip add 209.165.14.1 255.255.255.0
    no shut
int e0/2
    ip add 209.165.16.1 255.255.255.0
    no shut
router eigrp 1
    no auto
    net 0.0.0.0 255.255.255.255

hostname IOU2
int l0
    ip add 2.2.2.2 255.255.255.255
int e0/0
    ip add 209.165.12.2 255.255.255.0
    no shut
int e0/1
    ip add 192.168.23.2 255.255.255.0
    no shut
router eigrp 1
    no auto
    net 2.2.2.2 0.0.0.0
    net 209.165.12.0 0.0.0.255
router eigrp CCIE
    address-family ipv4 autonomous-system 100
        net 192.168.23.0 0.0.0.255
        topology base
        af-interface e0/1
            passive-interface

hostname IOU3
int e0/0
    ip add 192.168.23.3 255.255.255.0
    no shut
ip route 0.0.0.0 0.0.0.0 192.168.23.2

hostname IOU4
int l0
    ip add 4.4.4.4 255.255.255.255
int e0/0
    ip add 209.165.14.4 255.255.255.0
    no shut
int e0/1
    ip add 192.168.45.4 255.255.255.0
    no shut
router eigrp 1
    no auto
    net 4.4.4.4 0.0.0.0
    net 209.165.14.0 0.0.0.255
router eigrp CCIE
    address-family ipv4 autonomous-system 100
        net 192.168.45.0 0.0.0.255
        topology base
        af-interface e0/1
            passive-interface

hostname IOU5
int e0/0
    ip add 192.168.45.5 255.255.255.0
    no shut
ip route 0.0.0.0 0.0.0.0 192.168.45.4

hostname IOU6
int l0
    ip add 6.6.6.6 255.255.255.255
int e0/0
    ip add 209.165.16.6 255.255.255.0
    no shut
int e0/1
    ip add 192.168.67.6 255.255.255.0
    no shut
router eigrp 1
    no auto
    net 6.6.6.6 0.0.0.0
    net 209.165.16.0 0.0.0.255
router eigrp CCIE
    address-family ipv4 autonomous-system 100
        net 192.168.67.0 0.0.0.255
        topology base

Verification Link to heading

IOU6#show ip route eigrp
      2.0.0.0/32 is subnetted, 1 subnets
D        2.2.2.2 [90/435200] via 209.165.16.1, 00:00:23, Ethernet0/0
      4.0.0.0/32 is subnetted, 1 subnets
D        4.4.4.4 [90/435200] via 209.165.16.1, 00:00:23, Ethernet0/0
D     209.165.12.0/24 [90/307200] via 209.165.16.1, 00:00:23, Ethernet0/0
D     209.165.14.0/24 [90/307200] via 209.165.16.1, 00:00:23, Ethernet0/0

IOU6#show ip eigrp nei
EIGRP-IPv4 Neighbors for AS(1)
H   Address                 Interface              Hold Uptime   SRTT   RTO  Q  Seq
                                                   (sec)         (ms)       Cnt Num
0   209.165.16.1            Et0/0                    10 00:00:37   16   100  0  12
EIGRP-IPv4 VR(CCIE) Address-Family Neighbors for AS(100)
H   Address                 Interface              Hold Uptime   SRTT   RTO  Q  Seq
                                                   (sec)         (ms)       Cnt Num
0   192.168.67.7            Et0/1                    11 00:00:27    1  3000  0  1

Task 2: Link to heading

Configure DMVPN tunnels between R6, R2 and R4 as follows:

  • Source tunnels from Loopback0 addresses.
  • Use an NHRP network ID of 1.
  • Use an NHRP authentication string of NHRPAUTH.
  • Use GRE tunnel key of 2.
  • DMVPN allows multicast.
  • Enable EIGRP CCIE AS 100 on the tunnels.
  • Ensure that Spokes send packets directly to each other.

Answer:

  • By default, DMVPN allows only unicast => enable multicast by mapping to the NBMA address of Hub.
  • Disable split-horizon on Hub to allow Spokes learn routes of each other.
  • Using the command no ip next-hop-self eigrp 100 to not modify the next-hop value of EIGRP routes on Hub => allow Spokes send packets directly to each other.

Configuration Link to heading

IOU2(config)#
int tunnel 0
    ip add 169.254.246.2 255.255.255.0
    tunnel source l0
    tunnel mode gre multipoint
    ip nhrp nhs 169.254.246.6
    ip nhrp map 169.254.246.6 6.6.6.6
    ip nhrp map multicast 6.6.6.6
    ip nhrp map multicast dynamic
    ip nhrp network-id 1
    ip nhrp authentication NHRPAUTH
    tunnel key 2
router eigrp CCIE
    address-family ipv4 autonomous-system 100
        net 169.254.246.0 0.0.0.255

IOU4(config)#
int tunnel 0
    ip add 169.254.246.4 255.255.255.0
    tunnel source l0
    tunnel mode gre multipoint
    ip nhrp nhs 169.254.246.6
    ip nhrp map 169.254.246.6 6.6.6.6
    ip nhrp map multicast 6.6.6.6
    ip nhrp map multicast dynamic
    ip nhrp network-id 1
    ip nhrp authentication NHRPAUTH
    tunnel key 2
router eigrp CCIE
    address-family ipv4 autonomous-system 100
        net 169.254.246.0 0.0.0.255

IOU6(config)#
int tunnel 0
    ip add 169.254.246.6 255.255.255.0
    tunnel source l0
    tunnel mode gre multipoint
    ip nhrp map multicast dynamic
    ip nhrp network-id 1
    ip nhrp authentication NHRPAUTH
    tunnel key 2
router eigrp CCIE
    address-family ipv4 autonomous-system 100
        net 169.254.246.0 0.0.0.255
        af-interface Tunnel0
            no next-hop-self
            no split-horizon

Verification Link to heading

IOU2#show ip route eigrp
      4.0.0.0/32 is subnetted, 1 subnets
D        4.4.4.4 [90/435200] via 209.165.12.1, 00:05:05, Ethernet0/0
      6.0.0.0/32 is subnetted, 1 subnets
D        6.6.6.6 [90/435200] via 209.165.12.1, 00:04:50, Ethernet0/0
D     192.168.45.0/24 [90/102912000] via 169.254.246.4, 00:00:17, Tunnel0
D     192.168.67.0/24 [90/77312000] via 169.254.246.6, 00:00:17, Tunnel0
D     209.165.14.0/24 [90/307200] via 209.165.12.1, 00:05:26, Ethernet0/0
D     209.165.16.0/24 [90/307200] via 209.165.12.1, 00:05:26, Ethernet0/0

Task 3 Link to heading

No EIGRP, configure OSPF to form neighbor between Hub and Spokes via tunnels.

Answer:

By default, when OSPF is enabled, the network type of tunnel interface is point-to-point.

=> Change it to point-to-multipoint or broadcast, if not the OPSF will be flapping.

=> Broadcast is more preferable than point-to-multipoint. Because OSPF does not support next-hop-self command, with broadcast, the next hop will be redirected to other Spokes instead of Hub.

IOU6#show ip ospf int tun 0
Tunnel0 is up, line protocol is up
  Internet Address 169.254.246.6/24, Area 0, Attached via Interface Enable
  Process ID 100, Router ID 1.1.1.1, Network Type POINT_TO_POINT, Cost: 1000
  Topology-MTID    Cost    Disabled    Shutdown      Topology Name
        0           1000      no          no            Base
  Enabled by interface config, including secondary ip addresses
  Transmit Delay is 1 sec, State DOWN
  Timer intervals configured, Hello 10, Dead 40, Wait 40, Retransmit 5
    oob-resync timeout 40

Configuration Link to heading

IOU2(config)#
no router eigrp CCIE
router ospf 100
    passive-interface e0/1
int e0/1
    ip ospf 100 area 0
int tunnel 0
    ip ospf 100 area 0
    ip ospf network broadcast
    ip ospf priority 0

IOU4(config)#
no router eigrp CCIE
router ospf 100
    passive-interface e0/1
int e0/1
    ip ospf 100 area 0
int tunnel 0
    ip ospf 100 area 0
    ip ospf network broadcast
    ip ospf priority 0

IOU6(config)#
no router eigrp CCIE
router ospf 100
    passive-interface e0/1
int e0/1
    ip ospf 100 area 0
int tunnel 0
    ip ospf 100 area 0
    ip ospf network broadcast

Verification Link to heading

IOU2#show ip route ospf
O     192.168.45.0/24 [110/1010] via 169.254.246.4, 00:01:23, Tunnel0
O     192.168.67.0/24 [110/1010] via 169.254.246.6, 00:01:23, Tunnel0

IOU2#show ip ospf nei
Neighbor ID     Pri   State           Dead Time   Address         Interface
6.6.6.6           1   FULL/DR         00:00:36    169.254.246.6   Tunnel0

Task 4 Link to heading

Configure IPsec tunnels as follows:

  • Use an ISAKMP Policy with the following options:
    • Pre-Shared Key: CISCO
    • Encryption: 3DES
    • Hash: MD5
    • Diffie-Hellman Group: 5
  • Use a Crypto Map named GRE_OVER_IPSEC_MAP with the following options:
    • Loopbacks will be the tunnel endpoints
    • GRE Traffic should be sent inside the IPsec tunnels
    • Encrypt the traffic using 128-bit AES
    • Authenticate the traffic using SHA-1
    • Use ESP Transport mode to save additional encapsulation overhead
  • To prevent the tunnel endpoints from having to do IPsec fragmentation, configure the GRE tunnel IP MTU to 1400 bytes, and set them to adjust the TCP MSS accordingly.

Answer:

  • Loopbacks will be the tunnel endpoints => crypto map GRE_OVER_IPSEC_MAP local-address Loopback0
  • Traffic goes from LAN sites to LAN sites is (IP over GRE) over IPSec

=> GRE header is combination of 2.2.2.2, 4.4.4.4 or 6.6.6.6.

=> Access-list for IPSec must match these GRE header, otherwise the IPSec tunnel cannot form.

  • Enable crypto map GRE_OVER_IPSEC_MAP on physical interfaces.

Configuration Link to heading

IOU2(config)#
crypto isakmp policy 10
    encr 3des
    hash md5
    authentication pre-share
    group 5
crypto isakmp key CISCO address 0.0.0.0
crypto ipsec transform-set ESP_AES_128_SHA_1 esp-aes 128 esp-sha-hmac
    mode transport
crypto map GRE_OVER_IPSEC_MAP local-address Loopback0
ip access-list extended GRE_TRAFFIC
    permit gre host 2.2.2.2 host 6.6.6.6
    permit gre host 2.2.2.2 host 4.4.4.4
crypto map GRE_OVER_IPSEC_MAP 10 ipsec-isakmp
    set peer 4.4.4.4
    set peer 6.6.6.6
    set transform-set ESP_AES_128_SHA_1
    match address GRE_TRAFFIC
int tunnel 0
    ip mtu 1400
    ip tcp adjust-mss 1360
int e0/0
    crypto map GRE_OVER_IPSEC_MAP

IOU4(config)#
crypto isakmp policy 10
    encr 3des
    hash md5
    authentication pre-share
    group 5
crypto isakmp key CISCO address 0.0.0.0
crypto ipsec transform-set ESP_AES_128_SHA_1 esp-aes 128 esp-sha-hmac
    mode transport
crypto map GRE_OVER_IPSEC_MAP local-address Loopback0
ip access-list extended GRE_TRAFFIC
    permit gre host 4.4.4.4 host 6.6.6.6
    permit gre host 4.4.4.4 host 2.2.2.2
crypto map GRE_OVER_IPSEC_MAP 10 ipsec-isakmp
    set peer 2.2.2.2
    set peer 6.6.6.6
    set transform-set ESP_AES_128_SHA_1
    match address GRE_TRAFFIC
int tunnel 0
    ip mtu 1400
    ip tcp adjust-mss 1360
int e0/0
    crypto map GRE_OVER_IPSEC_MAP

IOU6(config)#
crypto isakmp policy 10
    encr 3des
    hash md5
    authentication pre-share
    group 5
crypto isakmp key CISCO address 0.0.0.0
crypto ipsec transform-set ESP_AES_128_SHA_1 esp-aes 128 esp-sha-hmac
    mode transport
crypto map GRE_OVER_IPSEC_MAP local-address Loopback0
ip access-list extended GRE_TRAFFIC
    permit gre host 6.6.6.6 host 2.2.2.2
    permit gre host 6.6.6.6 host 4.4.4.4
crypto map GRE_OVER_IPSEC_MAP 10 ipsec-isakmp
    set peer 4.4.4.4
    set peer 2.2.2.2
    set transform-set ESP_AES_128_SHA_1
    match address GRE_TRAFFIC
int tunnel 0
    ip mtu 1400
    ip tcp adjust-mss 1360
int e0/0
    crypto map GRE_OVER_IPSEC_MAP

Verification Link to heading

IOU2#show crypto isakmp sa
IPv4 Crypto ISAKMP SA
dst             src             state          conn-id status
4.4.4.4         2.2.2.2         QM_IDLE           1003 ACTIVE
6.6.6.6         2.2.2.2         QM_IDLE           1002 ACTIVE

IOU2#show crypto ipsec sa
interface: Ethernet0/0
    Crypto map tag: GRE_OVER_IPSEC_MAP, local addr 2.2.2.2
   protected vrf: (none)
   local  ident (addr/mask/prot/port): (2.2.2.2/255.255.255.255/47/0)
   remote ident (addr/mask/prot/port): (4.4.4.4/255.255.255.255/47/0)
   current_peer 4.4.4.4 port 500
     PERMIT, flags={origin_is_acl,}
    #pkts encaps: 4, #pkts encrypt: 4, #pkts digest: 4
    #pkts decaps: 4, #pkts decrypt: 4, #pkts verify: 4
    #pkts compressed: 0, #pkts decompressed: 0
    #pkts not compressed: 0, #pkts compr. failed: 0
    #pkts not decompressed: 0, #pkts decompress failed: 0
    #send errors 0, #recv errors 0
     local crypto endpt.: 2.2.2.2, remote crypto endpt.: 4.4.4.4
     path mtu 1500, ip mtu 1500, ip mtu idb Ethernet0/0
     current outbound spi: 0x546B59B5(1416321461)
     PFS (Y/N): N, DH group: none
     inbound esp sas:
      spi: 0x17058238(386236984)
        transform: esp-aes esp-sha-hmac ,
        in use settings ={Transport, }
        conn id: 3, flow_id: SW:3, sibling_flags 80000000, crypto map: GRE_OVER_IPSEC_MAP
        sa timing: remaining key lifetime (k/sec): (4365022/3363)
        IV size: 16 bytes
        replay detection support: Y
        Status: ACTIVE(ACTIVE)
     inbound ah sas:
     inbound pcp sas:
     outbound esp sas:
      spi: 0x546B59B5(1416321461)
        transform: esp-aes esp-sha-hmac ,
        in use settings ={Transport, }
        conn id: 4, flow_id: SW:4, sibling_flags 80000000, crypto map: GRE_OVER_IPSEC_MAP
        sa timing: remaining key lifetime (k/sec): (4365022/3363)
        IV size: 16 bytes
        replay detection support: Y
        Status: ACTIVE(ACTIVE)
     outbound ah sas:
     outbound pcp sas:
     local crypto endpt.: 2.2.2.2, remote crypto endpt.: 6.6.6.6
     path mtu 1500, ip mtu 1500, ip mtu idb Ethernet0/0
     current outbound spi: 0x0(0)
     PFS (Y/N): N, DH group: none
     inbound esp sas:
     inbound ah sas:
     inbound pcp sas:
     outbound esp sas:
     outbound ah sas:
     outbound pcp sas:
   protected vrf: (none)
   local  ident (addr/mask/prot/port): (2.2.2.2/255.255.255.255/47/0)
   remote ident (addr/mask/prot/port): (6.6.6.6/255.255.255.255/47/0)
   current_peer 6.6.6.6 port 500
     PERMIT, flags={origin_is_acl,}
    #pkts encaps: 67, #pkts encrypt: 67, #pkts digest: 67
    #pkts decaps: 67, #pkts decrypt: 67, #pkts verify: 67
    #pkts compressed: 0, #pkts decompressed: 0
    #pkts not compressed: 0, #pkts compr. failed: 0
    #pkts not decompressed: 0, #pkts decompress failed: 0
    #send errors 0, #recv errors 0
     local crypto endpt.: 2.2.2.2, remote crypto endpt.: 4.4.4.4
     path mtu 1500, ip mtu 1500, ip mtu idb Ethernet0/0
     current outbound spi: 0x0(0)
     PFS (Y/N): N, DH group: none
     inbound esp sas:
     inbound ah sas:
     inbound pcp sas:
     outbound esp sas:
     outbound ah sas:
     outbound pcp sas:
     local crypto endpt.: 2.2.2.2, remote crypto endpt.: 6.6.6.6
     path mtu 1500, ip mtu 1500, ip mtu idb Ethernet0/0
     current outbound spi: 0xF02206EB(4028761835)
     PFS (Y/N): N, DH group: none
     inbound esp sas:
      spi: 0x507904CC(1350108364)
        transform: esp-aes esp-sha-hmac ,
        in use settings ={Transport, }
        conn id: 1, flow_id: SW:1, sibling_flags 80000000, crypto map: GRE_OVER_IPSEC_MAP
        sa timing: remaining key lifetime (k/sec): (4321374/3343)
        IV size: 16 bytes
        replay detection support: Y
        Status: ACTIVE(ACTIVE)
     inbound ah sas:
     inbound pcp sas:
     outbound esp sas:
      spi: 0xF02206EB(4028761835)
        transform: esp-aes esp-sha-hmac ,
        in use settings ={Transport, }
        conn id: 2, flow_id: SW:2, sibling_flags 80000000, crypto map: GRE_OVER_IPSEC_MAP
        sa timing: remaining key lifetime (k/sec): (4321374/3343)
        IV size: 16 bytes
        replay detection support: Y
        Status: ACTIVE(ACTIVE)
     outbound ah sas:
     outbound pcp sas:

IOU3#ping 192.168.45.5
Type escape sequence to abort.
Sending 5, 100-byte ICMP Echos to 192.168.45.5, timeout is 2 seconds:
!!!!!
Success rate is 100 percent (5/5), round-trip min/avg/max = 1/7/10 ms

Now all LAN traffic (include EIGRP hello) is encrypted as ESP packets:

wireshark

Task 5 Link to heading

  • Delete the above crypto map GRE_OVER_IPSEC_MAP.
  • Use IPsec Profile named GRE_OVER_IPSEC_PROFILE with the same options.

Answer: Enable IPSec Profile on tunnel interface.

Configuration Link to heading

IOU2(config)#
int e0/0
    no crypto map GRE_OVER_IPSEC_MAP
    exit
no crypto map GRE_OVER_IPSEC_MAP
crypto ipsec profile GRE_OVER_IPSEC_PROFILE
    set transform-set ESP_AES_128_SHA_1
int tunnel 0
    tunnel protection ipsec profile GRE_OVER_IPSEC_PROFILE

IOU4(config)#
int e0/0
    no crypto map GRE_OVER_IPSEC_MAP
    exit
no crypto map GRE_OVER_IPSEC_MAP
crypto ipsec profile GRE_OVER_IPSEC_PROFILE
    set transform-set ESP_AES_128_SHA_1
int tunnel 0
    tunnel protection ipsec profile GRE_OVER_IPSEC_PROFILE

IOU6(config)#
int e0/0
    no crypto map GRE_OVER_IPSEC_MAP
    exit
no crypto map GRE_OVER_IPSEC_MAP
crypto ipsec profile GRE_OVER_IPSEC_PROFILE
    set transform-set ESP_AES_128_SHA_1
int tunnel 0
    tunnel protection ipsec profile GRE_OVER_IPSEC_PROFILE

Verification Link to heading

IOU3#ping 192.168.45.5
Type escape sequence to abort.
Sending 5, 100-byte ICMP Echos to 192.168.45.5, timeout is 2 seconds:
!!!!!
Success rate is 100 percent (5/5), round-trip min/avg/max = 1/1/1 ms
