The Problem Link to heading

When working with AWS resources in private subnets, there’s a common challenge: how to access AWS services like S3 without exposing your resources to the internet. Traditionally, this was solved using NAT Gateways, but this approach has several drawbacks:

Cost: NAT Gateways are charged per hour and per GB of data processed
Complexity: Requires managing public subnets and Internet Gateways
Security: Traffic still goes through the public internet
Performance: Additional network hop through NAT Gateway

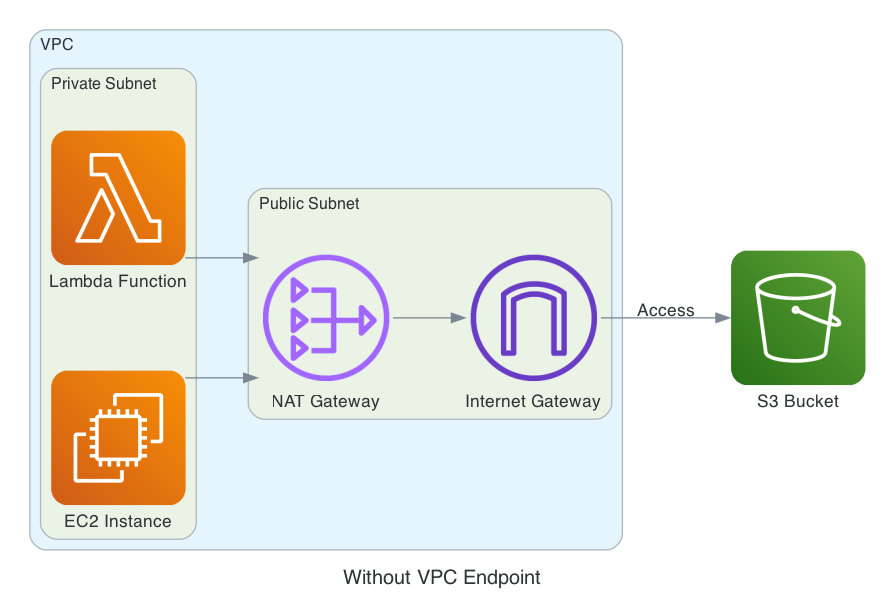

without-vpc-endpoint

The Solution: VPC Endpoints Link to heading

VPC Endpoints provide a more elegant solution by creating a private connection between your VPC and AWS services.

Cost Savings

No NAT Gateway costs, no data processing fees
Traffic stays within AWS network

Enhanced Security

No exposure to the public internet, traffic remains within AWS network
Can be controlled through security groups and endpoint policies

Better Performance

Direct connection to AWS services, lower latency
No network hop through NAT Gateway

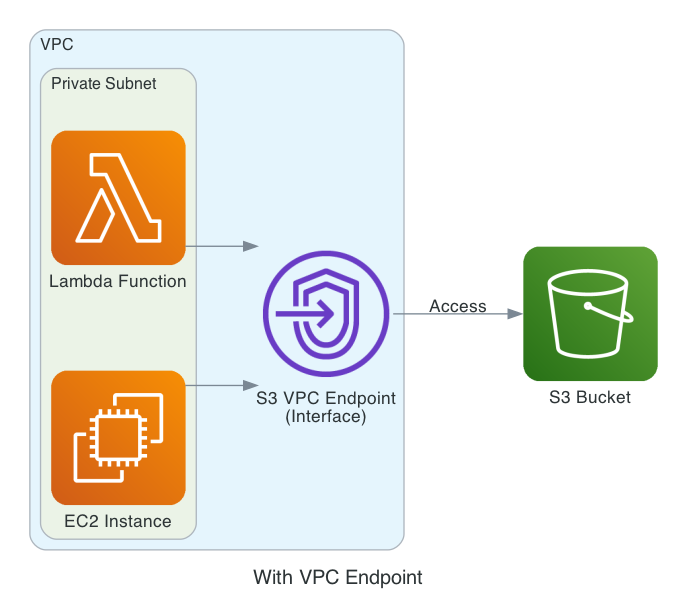

with-vpc-endpoint

Demo: Lambda Accessing S3 Through VPC Endpoint Link to heading

Let’s walk through a practical example of a Lambda function in a private subnet accessing an S3 bucket through a VPC Endpoint.

Architecture Overview Link to heading

1 VPC with 1 private subnet
1 S3 bucket for storing metadata file
1 Lambda function in the private subnet
VPC Endpoint for S3 access
No NAT Gateway needed

Setup VPC and S3 bucket Link to heading

Create a VPC with a private subnet

# main.tf
provider "aws" {
  region = "us-west-2"
}

locals {
  prefix = "vpc-endpoint-demo"
}

# vpc.tf
resource "aws_vpc" "main" {
  cidr_block           = "10.0.0.0/16"
  enable_dns_support   = true
  enable_dns_hostnames = true

  tags = {
    Name = "${local.prefix}-vpc"
  }
}

resource "aws_subnet" "private" {
  vpc_id            = aws_vpc.main.id
  cidr_block        = "10.0.1.0/24"
  availability_zone = "us-west-2a"

  tags = {
    Name = "${local.prefix}-private-subnet"
  }
}

resource "aws_route_table" "private" {
  vpc_id = aws_vpc.main.id

  tags = {
    Name = "${local.prefix}-private-rt"
  }
}

resource "aws_route_table_association" "private" {
  subnet_id      = aws_subnet.private.id
  route_table_id = aws_route_table.private.id
}

Create a S3 bucket storing a metadata file

# s3.tf
resource "random_string" "bucket_suffix" {
  length  = 8
  special = false
  upper   = false
}

resource "aws_s3_bucket" "demo" {
  bucket = "${local.prefix}-bucket-${random_string.bucket_suffix.result}"

  tags = {
    Name = "${local.prefix}-bucket-${random_string.bucket_suffix.result}"
  }
}

resource "aws_s3_object" "metadata_file" {
  bucket = aws_s3_bucket.demo.id
  key    = "metadata.json"
  content = jsonencode({
    "version" = "1.0",
    "data" = {
      "name" = "Sample Metadata",
      "description" = "This is a sample metadata file for VPC Endpoint demo"
    }
  })
}

Create Lambda function Link to heading

Create a Lamdba function to access the S3 bucket, get the metadata file and return the content

# lambda_function.py
import json
import boto3
import os

def lambda_handler(event, context):
    s3_client = boto3.client('s3')
    bucket_name = os.environ['BUCKET_NAME']
    file_key = os.environ['FILE_KEY']

    try:
        response = s3_client.get_object(Bucket=bucket_name, Key=file_key)
        file_content = response['Body'].read().decode('utf-8')
        metadata = json.loads(file_content)

        return {
            'statusCode': 200,
            'body': json.dumps({
                'message': 'Successfully read metadata file',
                'content': metadata
            })
        }
    except Exception as e:
        return {
            'statusCode': 500,
            'body': json.dumps({
                'message': 'Error reading metadata file',
                'error': str(e)
            })
        }

Zip the lambda function

zip -r lambda_function.zip lambda_function.py

Create a Lambda function in the private subnet

# lambda.tf
resource "aws_iam_role" "lambda_role" {
  name = "${local.prefix}-lambda-role"

  assume_role_policy = jsonencode({
    Version = "2012-10-17"
    Statement = [
      {
        Action = "sts:AssumeRole"
        Effect = "Allow"
        Principal = {
          Service = "lambda.amazonaws.com"
        }
      }
    ]
  })
}

resource "aws_iam_role_policy_attachment" "lambda_vpc_access" {
  role       = aws_iam_role.lambda_role.name
  policy_arn = "arn:aws:iam::aws:policy/service-role/AWSLambdaVPCAccessExecutionRole"
}

resource "aws_iam_role_policy" "lambda_s3_access" {
  name = "${local.prefix}-lambda-s3-access"
  role = aws_iam_role.lambda_role.id

  policy = jsonencode({
    Version = "2012-10-17"
    Statement = [
      {
        Effect = "Allow"
        Action = [
          "s3:GetObject"
        ]
        Resource = "${aws_s3_bucket.demo.arn}/*"
      }
    ]
  })
}

resource "aws_lambda_function" "demo" {
  filename         = "./lambda_function.zip"
  function_name    = "${local.prefix}-lambda"
  role            = aws_iam_role.lambda_role.arn
  handler         = "lambda_function.lambda_handler"
  runtime         = "python3.9"
  timeout         = 30

  vpc_config {
    subnet_ids         = [aws_subnet.private.id]
    security_group_ids = [aws_security_group.lambda.id]
  }

  environment {
    variables = {
      BUCKET_NAME = aws_s3_bucket.demo.id
      FILE_KEY    = "metadata.json"
    }
  }
}

resource "aws_security_group" "lambda" {
  name        = "${local.prefix}-lambda-sg"
  description = "Security group for Lambda function"
  vpc_id      = aws_vpc.main.id

  egress {
    from_port   = 0
    to_port     = 0
    protocol    = "-1"
    cidr_blocks = ["0.0.0.0/0"]
    description = "Allow all outbound traffic"
  }

  tags = {
    Name = "${local.prefix}-lambda-sg"
  }
}

If we invoke the Lambda function now, it will fail because the Lambda function is not able to access the S3 bucket.

aws lambda invoke --function-name vpc-endpoint-demo-lambda response.json

cat response.json
{"errorMessage":"2022-10-23T20:43:44.629Z 4814380c-873b-4335-9987-016296730e2d Task timed out after 30.04 seconds"}

Create VPC Endpoint Link to heading

Create a VPC Endpoint type Interface for S3 access. Note that the ingress rule of the security group is open to all traffic from the Lambda function.

# vpc.tf
resource "aws_vpc_endpoint" "s3" {
  vpc_id             = aws_vpc.main.id
  service_name       = "com.amazonaws.us-west-2.s3"
  vpc_endpoint_type  = "Interface"
  subnet_ids         = [aws_subnet.private.id]
  security_group_ids = [aws_security_group.vpc_endpoint.id]

  tags = {
    Name = "${local.prefix}-s3-endpoint"
  }
}

resource "aws_security_group" "vpc_endpoint" {
  name        = "${local.prefix}-endpoint-sg"
  description = "Security group for S3 VPC Endpoint"
  vpc_id      = aws_vpc.main.id

  ingress {
    from_port       = 0
    to_port         = 0
    protocol        = "-1"
    security_groups = [aws_security_group.lambda.id]
    description     = "Allow all traffic from Lambda"
  }

  tags = {
    Name = "${local.prefix}-endpoint-sg"
  }
}

Now, if we invoke the Lambda function, it will succeed because the Lambda function is able to access the S3 bucket through the VPC Endpoint.

aws lambda invoke --function-name vpc-endpoint-demo-lambda response.json

cat response.json
{"statusCode": 200, "body": "{\"message\": \"Successfully read metadata file\", \"content\": {\"data\": {\"description\": \"This is a sample metadata file for VPC Endpoint demo\", \"name\": \"Sample Metadata\"}, \"version\": \"1.0\"}}"}

Code for diagrams

# diagrams==0.23.3
# graphviz==0.20.1
from diagrams import Diagram, Cluster, Edge
from diagrams.aws.compute import Lambda, EC2
from diagrams.aws.storage import S3
from diagrams.aws.network import Endpoint, InternetGateway, NATGateway

graph_attr = {
    "pad": "0.2"
}

with Diagram("Without VPC Endpoint", filename="without_vpc_endpoint", direction="LR", graph_attr=graph_attr):
    with Cluster("VPC"):
        with Cluster("Private Subnet"):
            lambda_func = Lambda("Lambda Function")
            ec2_instance = EC2("EC2 Instance")

        with Cluster("Public Subnet"):
           nat_gateway = NATGateway("NAT Gateway")
           internet_gateway = InternetGateway("Internet Gateway")

        ec2_instance >> nat_gateway
        lambda_func >> nat_gateway
        nat_gateway >> internet_gateway

    s3_bucket = S3("S3 Bucket")

    internet_gateway >> Edge(label="Access") >> s3_bucket

with Diagram("With VPC Endpoint", filename="with_vpc_endpoint", direction="LR", graph_attr=graph_attr):
    with Cluster("VPC"):
        with Cluster("Private Subnet"):
            lambda_func = Lambda("Lambda Function")
            ec2_instance = EC2("EC2 Instance")

        vpc_endpoint = Endpoint("S3 VPC Endpoint\n(Interface)")

        ec2_instance >> vpc_endpoint
        lambda_func >> vpc_endpoint

    s3_bucket = S3("S3 Bucket")

    vpc_endpoint >> Edge(label="Access") >> s3_bucket
